TCLIFT MMH650-2T46
Make: TCLIFT  |  Model: MMH650-2T46  |  2T-2C (2 Ton Twin Cage)

SMARTPRO+

Automated · Intelligent · Unmanned

The most advanced rack-and-pinion construction hoist engineered for the world's most demanding high-rise projects. Built for speed, safety, and intelligence — from ground level to 243 meters.

0 kg / Cage
0 Meter Height
0 / 0
m/min Speed
0 Persons / Cage
View Specifications Contact Us
TCLIFT Smart Pro+ Construction Hoist on site
Safe · Smart · Reliable · Durable 1 Year Standard + 2*Year extended Warranty
Technical Specifications

BUILT FOR
PERFORMANCE

Every dimension, every material, every system — engineered to deliver maximum productivity on the world's most complex construction sites. The SMART PRO+ sets a new benchmark for construction hoists.

2,000 kg Rated Load Per Cage

Handles steel, concrete and heavy equipment. Reduces number of trips per floor and significantly increases overall site efficiency.

20 Persons Capacity

Smart-controlled passenger counting system. Prevents overloading, ensures safety and regulated usage on site across all shifts.

243 m Maximum Height

Suitable for high-rise and mega construction projects up to 243 meters. Eliminates need for additional lifting arrangements on tall structures.

46/63 m/min Top Speed

Variable speed from 0–46/63 m/min with intelligent frequency drive. Smooth operation and safety. Faster vertical transport improves productivity.

3.2×1.45
×2.2 m Cage Dimensions (L×W×H)

Spacious design carries both materials and manpower simultaneously. Anti-skid chequered plate floor. Vertical sliding door with ramp system.

2×18.5 kW Motor Power

Dual 3-phase induction motors with heavy-duty gearbox. High torque and smooth lifting at full load. Electromagnetic + centrifugal dual braking.

E350 + 80µ HDG Chassis Standard

E350 structural steel with 80 micron hot-dip galvanisation. Corrosion-resistant base ensures long life and structural stability. 15+ year design life.

4.5/6.3 mm Mast Pipe Thickness

High-strength 4.5/6.3mm pipe mast at 153 kg per section. 650×650×1508mm profile. Hot-dip galvanised. 6m tie intervals for rigid, stable structure.

Parameter Specification Advantage / Detail
General
Model TCLIFT MMH650-2T46 Smart Pro+ 2T-2C Twin Cage Rack & Pinion Passenger & Material Hoist
Cage Configuration 2T-2C (2 Ton Twin Cage) Dual simultaneous operation for maximum throughput
Rated Load 2,000 kg per cage (2 Ton) Handles steel, concrete, equipment and personnel
Passenger Capacity 20 persons per cage Smart-controlled with biometric and people-counting
Maximum Height 243 meters For mega high-rise and infrastructure projects
Standard Supply Height 60 meters Quick installation; extendable as building grows
Speed 0–46/63 m/min (Variable) Intelligent frequency-controlled smooth operation
Drive System Rack & Pinion — Module 6 Reliable, low-maintenance; continuous heavy-duty use
Cage & Structure
Cage Dimensions 3.2 × 1.45 × 2.3 m Spacious for combined material and manpower transport
Cage Material Fully Galvanised Steel Rust-free in rain, dust and harsh site conditions
Cage Floor Anti-Skid Chequered Plate Enhanced safety for personnel movement inside cage
Door System Vertical Sliding + Ramp Smooth material loading and unloading at every floor
Chassis E350 Structural Steel Industrial grade with 80 Micron HDG coating
Design Life 15+ Years Reduces long-term maintenance and replacement cost
Mast System
Mast Dimensions 650 × 650 × 1508 mm Standard section profile for stable tall structures
Mast Material 4.5/6.3 mm High-Strength Pipe Rigid structure, reduces vibration and improves safety
Mast Weight 153 kg per section Hot dip galvanised for long-term corrosion resistance
Tie Interval 6 meters Secure wall attachment at regular intervals
Drive & Power
Motor 2 × 18.5 kW 3-phase induction; high torque at full load
Gearbox Heavy Duty Suitable for continuous heavy-duty operation
Brake System Electromagnetic + Centrifugal Dual redundant braking for maximum safety
Control System Intelligent Control System Manual / Auto / Unmanned operating modes
Interface Smart Display Auto logic and real-time operational feedback
Smart Technology
IoT Monitoring Enabled — Real-time Remote performance tracking from anywhere
Cloud Connectivity Yes — Centralized Data Analysis, predictive maintenance, decision support
Fault System Codes + Alerts + Diagnosis Immediate fault identification to reduce downtime
Voice Announcements Integrated Operator guidance and safety awareness
Biometric Access Fingerprint — Operator/User Restricts unauthorized usage, improves accountability
Shift Control Day/Night + People Count Tracks usage, manages manpower efficiently
Utilisation Monitoring Real-time tracking Optimizes deployment and reduces idle time
Safety System
Anti-Fall Device SRIBS — Model SAJ 40-1.4B CE Certified; GB/T 34025:2017 Standard
Overload Protection Yes — Auto Stop Prevents structural damage and accidents
Overspeed Governor Tripping Speed: 1.15 m/s Centrifugal; controls excessive speed automatically
Limit Switches All Types Upper, lower, and intermediate travel protection
Door Interlock Full Door System Operates only with all doors fully closed
Emergency Stop Yes Immediate full-system shutdown capability
Power Failure Brake Auto Brake Electromagnetic; holds position on power loss
Safety Hook & Buffer Yes Absorbs shock, additional mechanical protection
Security
CCTV In-Cage Monitoring Live activity tracking, discipline and safety
Recording 10–15 Days Loop Stored footage for audits and incident analysis
Warranty
Coverage 3 Years* — Major Components Industry-leading warranty for total peace of mind. *Terms & conditions apply.
Key Features

ENGINEERED TO
OUTPERFORM

Every feature is designed around one goal: maximum productivity with zero compromise on safety. The SMART PRO+ sets the standard for construction hoists globally.

Structure & Build Quality

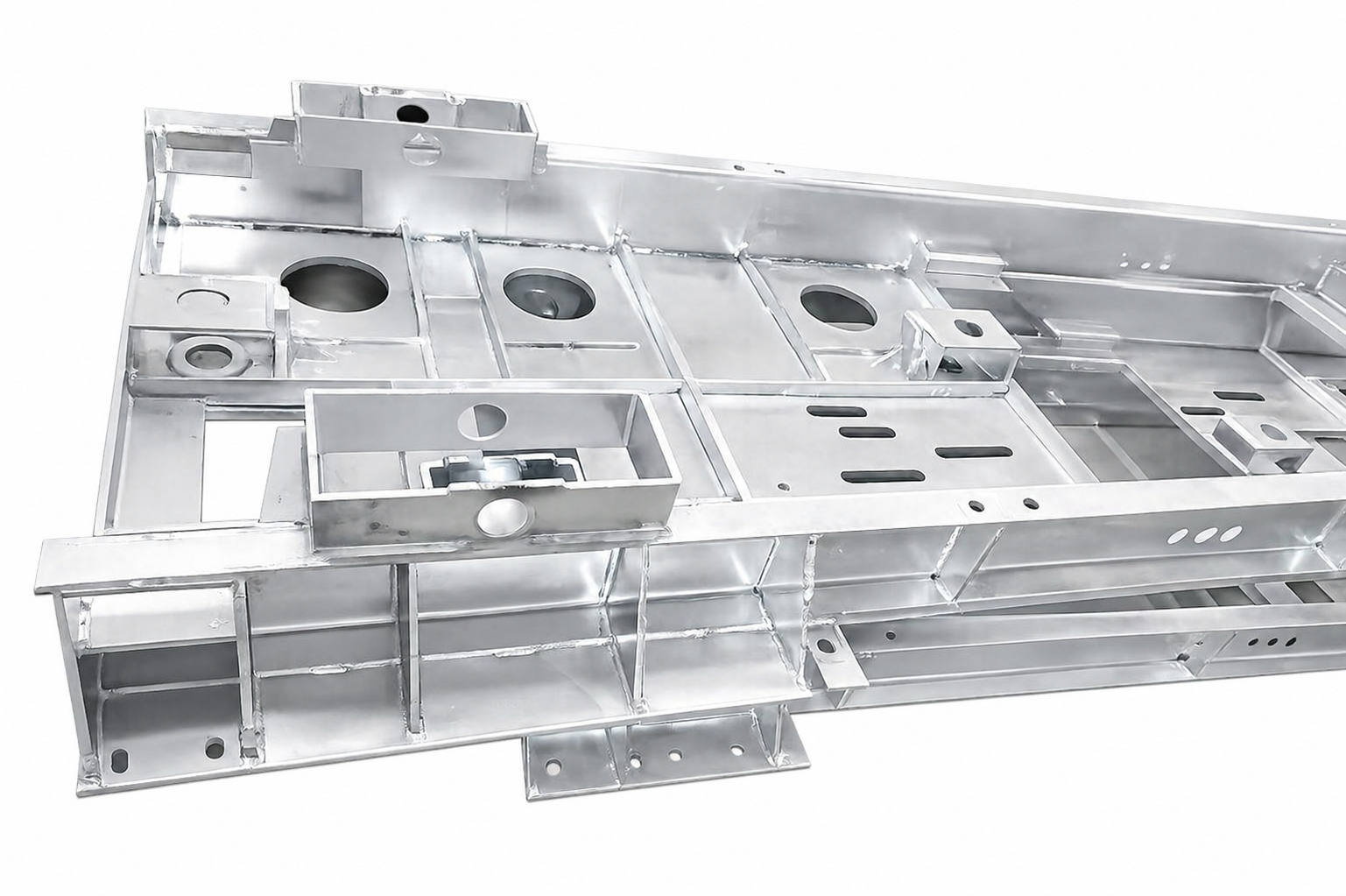

TCLIFT E350 Structural Chassis
01 — STRUCTURE
E350 Steel Structural Chassis

Premium E350 grade structural steel chassis with 80-micron hot-dip galvanisation. Engineered for 15+ years of service life in the harshest conditions — rain, dust, coastal and tropical environments — with minimal maintenance cost.

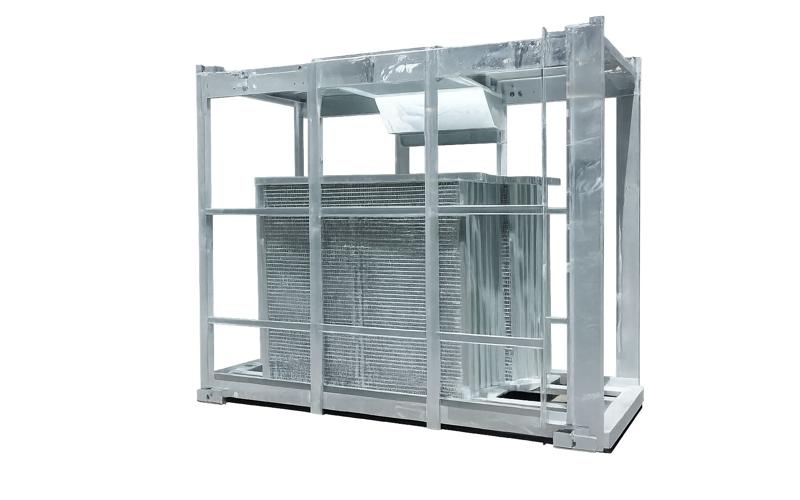

TCLIFT Fully Galvanised Cage
02 — CAGE
Fully Galvanised Heavy-Duty Cage

Hot-Dip Galvanised (HDG) E350 grade steel structural members provide superior strength, durability, and corrosion resistance. E350 steel offers high yield strength for enhanced load-bearing capacity and structural reliability, while the HDG coating ensures long-term protection against rust. Combined with anti-skid chequered plate flooring for personnel safety, this construction minimizes maintenance, lowers lifetime ownership costs, and maintains structural integrity and appearance for years of reliable operation.

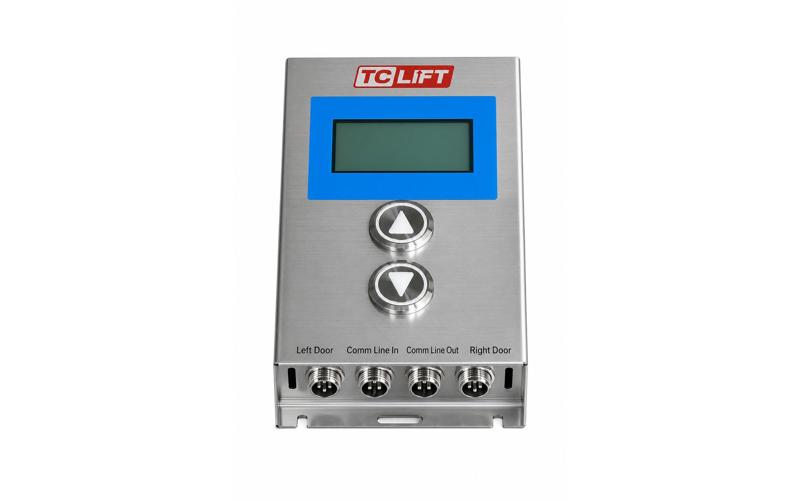

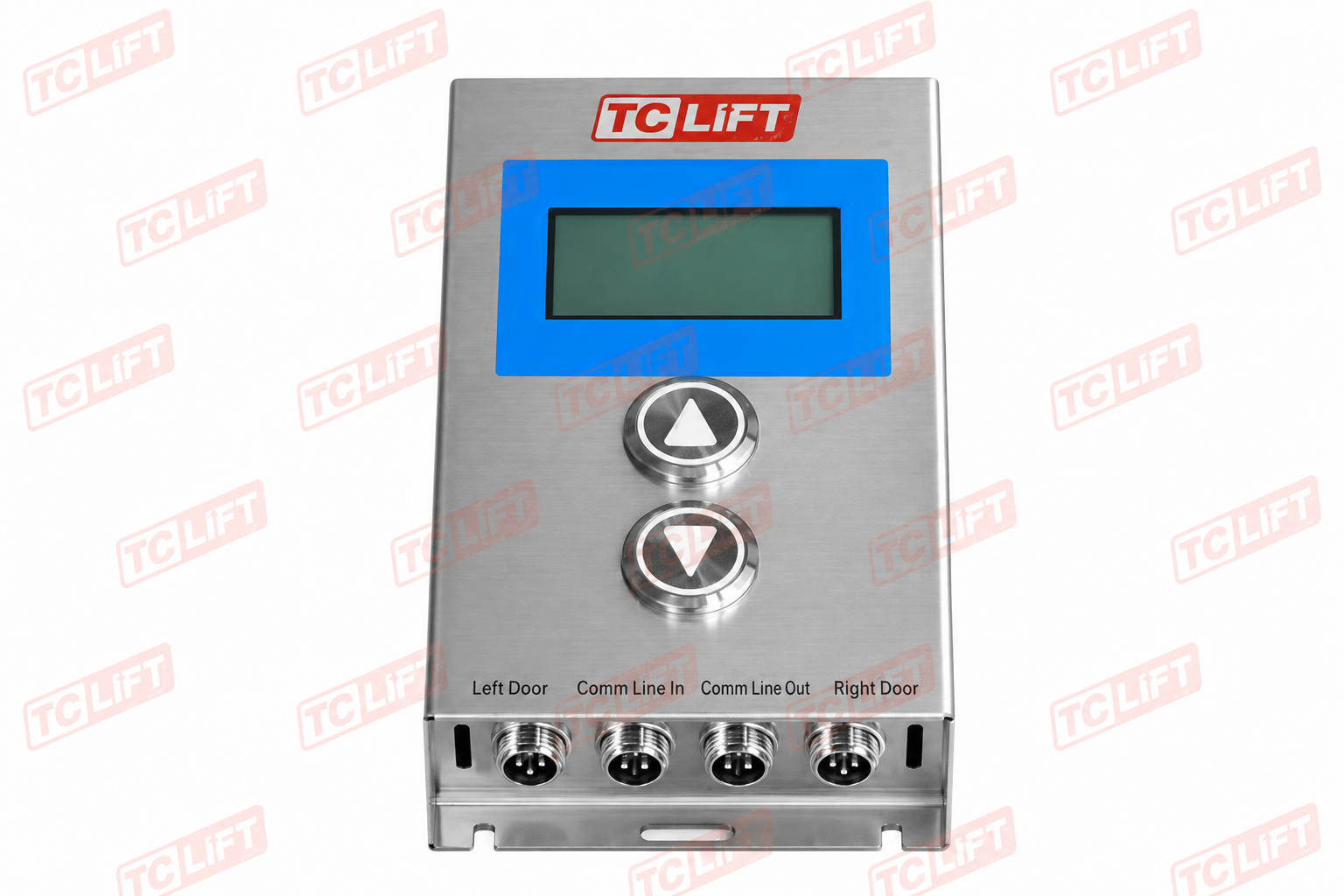

TCLIFT Floor Call Button Panel
03 — CONTROL
Smart Call Panel at Every Floor

Stainless-steel call station installed at every floor level. Features an LCD display with up/down controls and multi-port communication connectors for Left Door, Comm Line In, Comm Line Out and Right Door — enabling fully networked floor-to-floor hoist management.

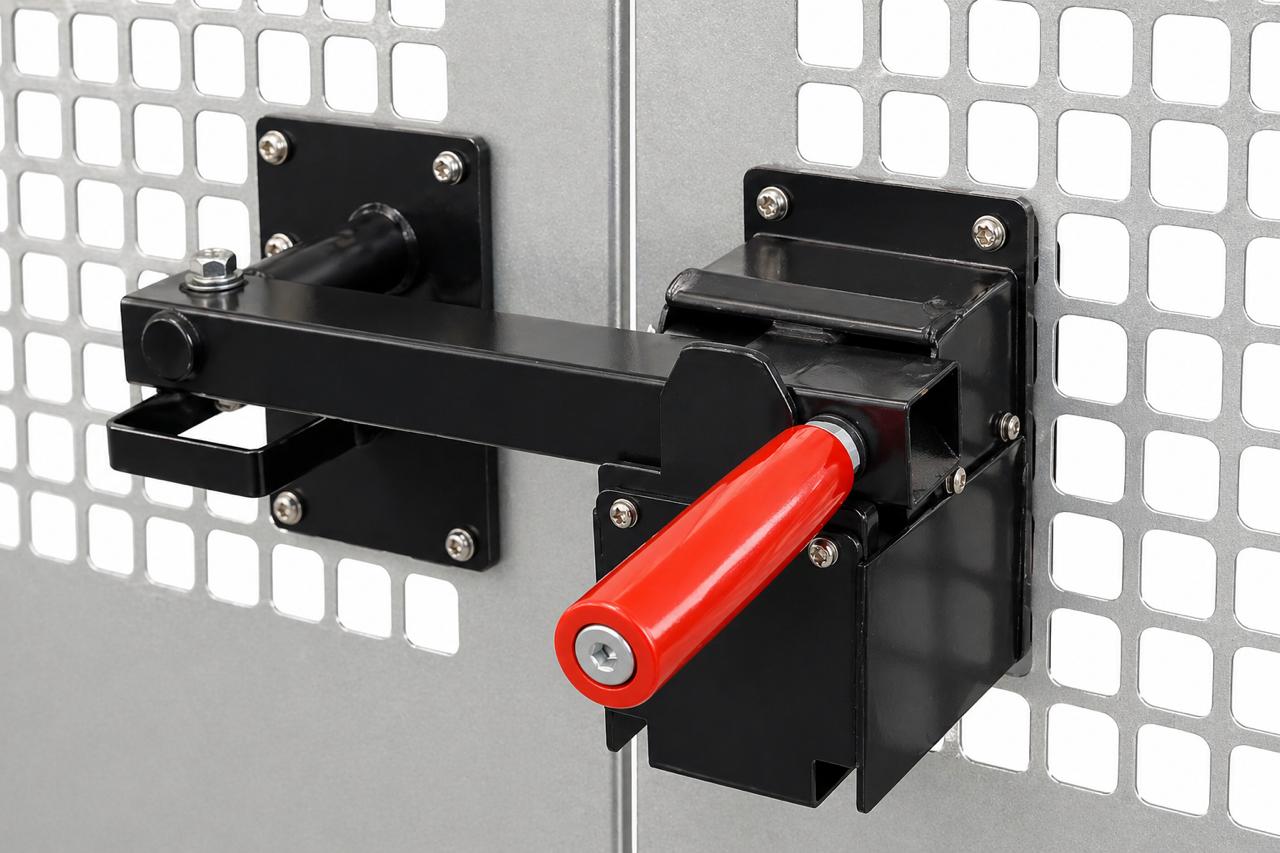

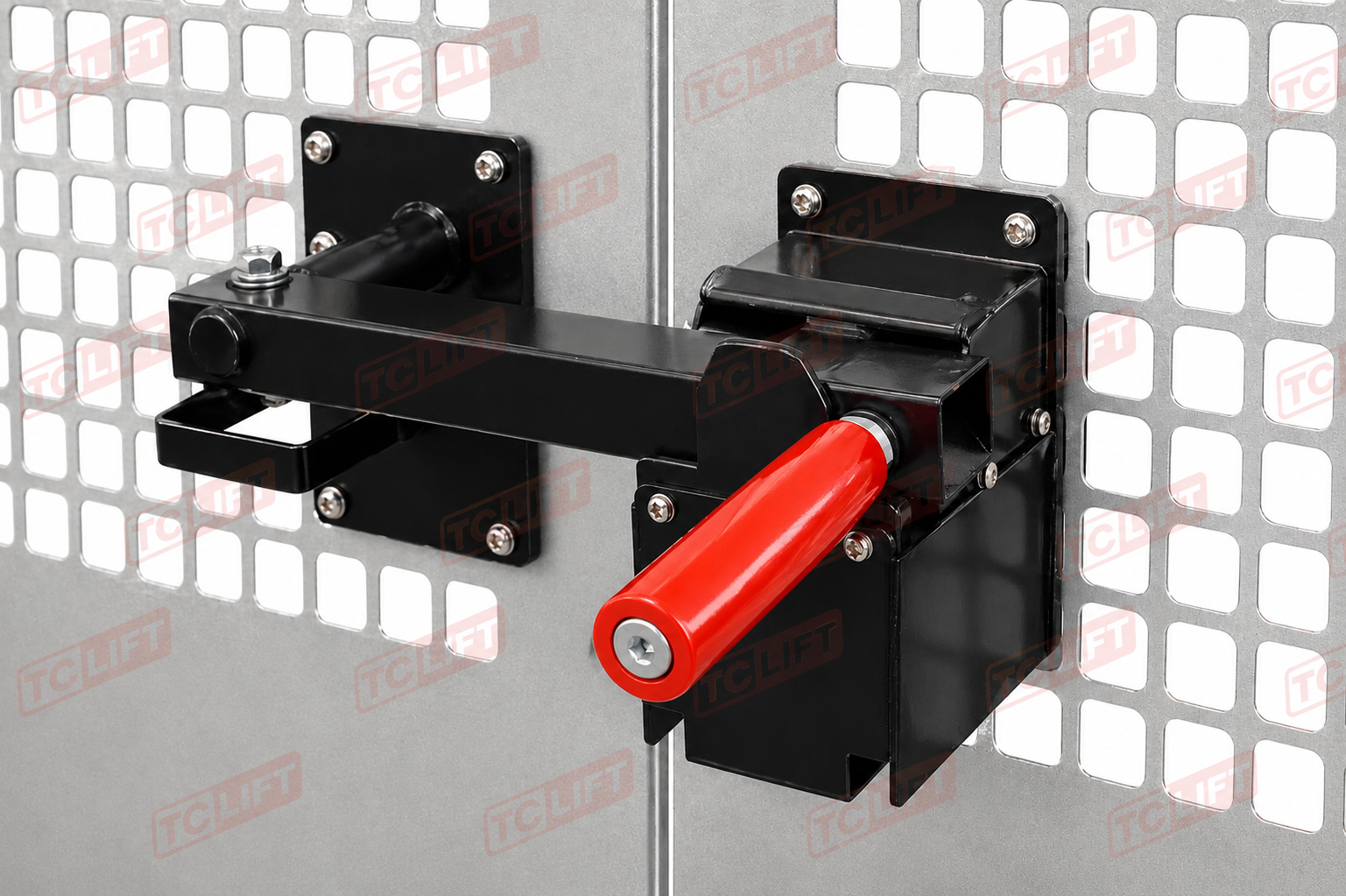

TCLIFT Safety Door Lock Mechanism
04 — SAFETY LOCK
Automatic Door Interlock System

Heavy-duty electro-mechanical door locking mechanism with red safety handle. Automatically unlocks only when the elevator reaches the correct floor and the cage door is fully open — eliminating the risk of access at incorrect heights.

Precision Components & Drive

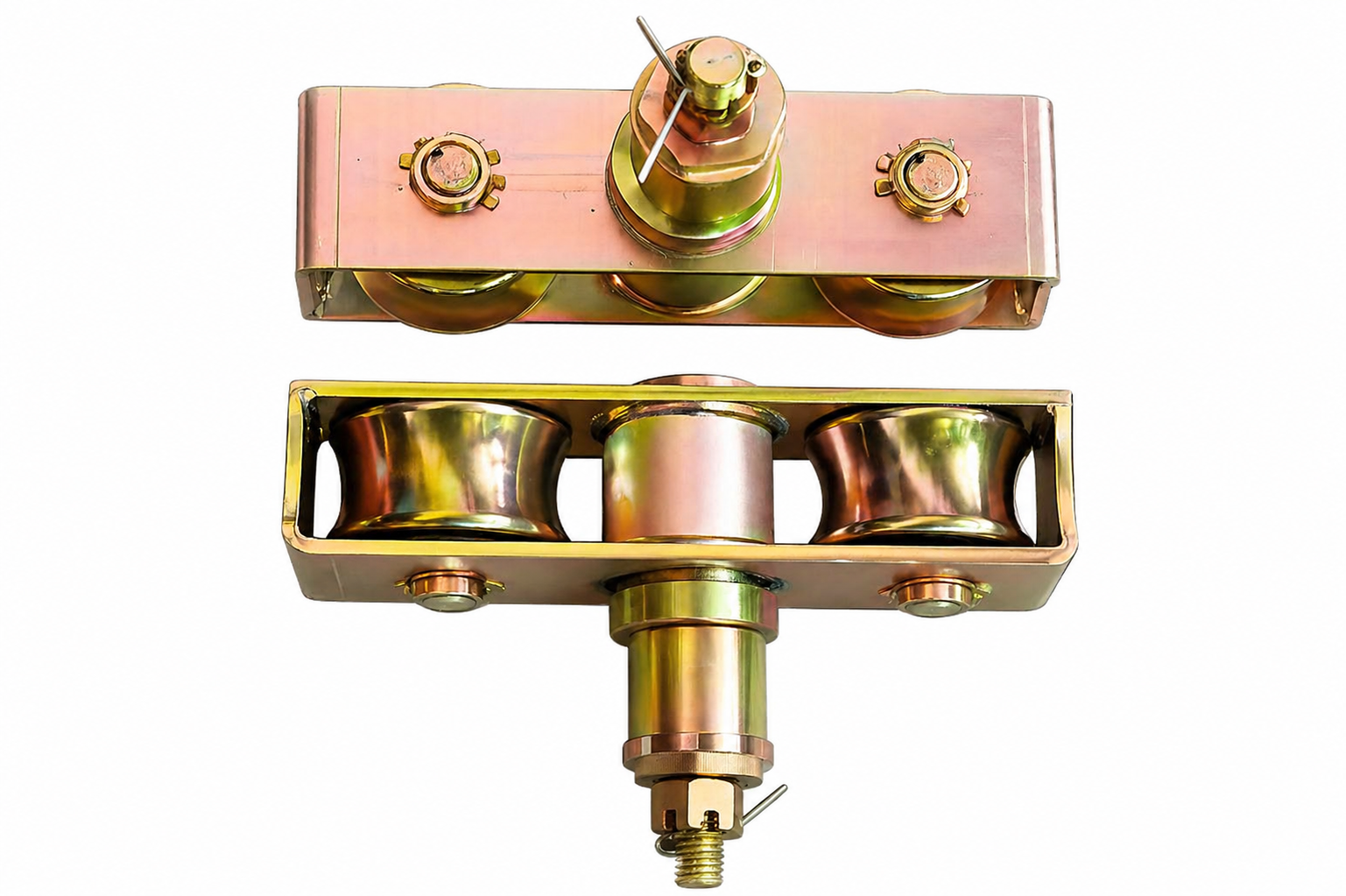

TCLIFT Heavy Duty Roller Guide Shoes
05 — GUIDE SHOES
High-Grade Steel Roller Guide Assembly

Precision-machined zinc-plated roller guide shoes with integral grease nipple fittings. These key wear parts are engineered to last — rarely require replacement — and deliver the smooth, stable ride quality that high-speed operation demands.

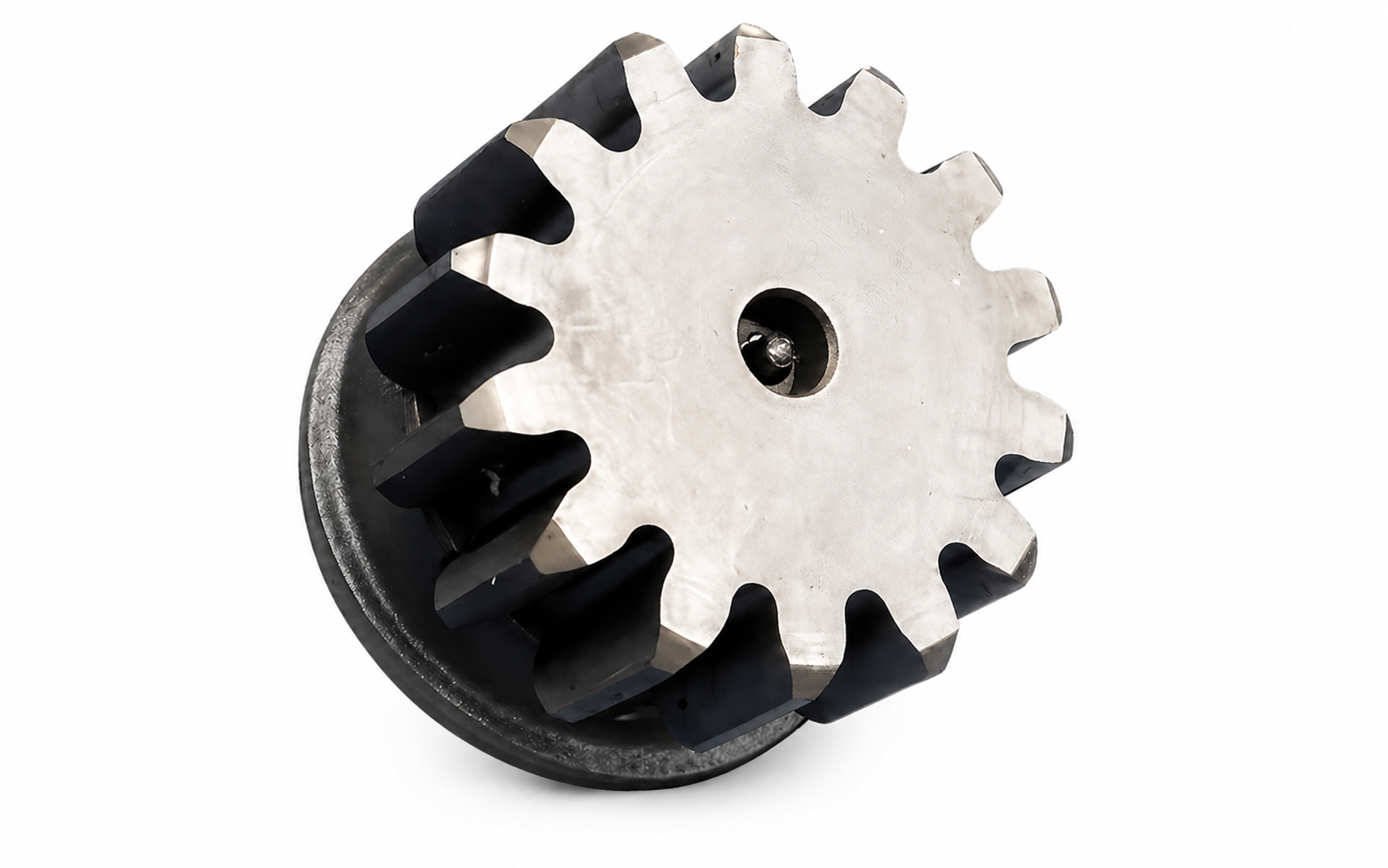

TCLIFT Heavy Duty Pinion Gear
06 — DRIVE GEAR
Heavy-Duty High-Grade Steel Pinion

Produced from premium high-grade steel with advanced heat treatment and precision machining to the tightest tolerances. This core drive component ensures smooth, vibration-free travel at high speed while providing reliable protection against free-fall under any load condition.

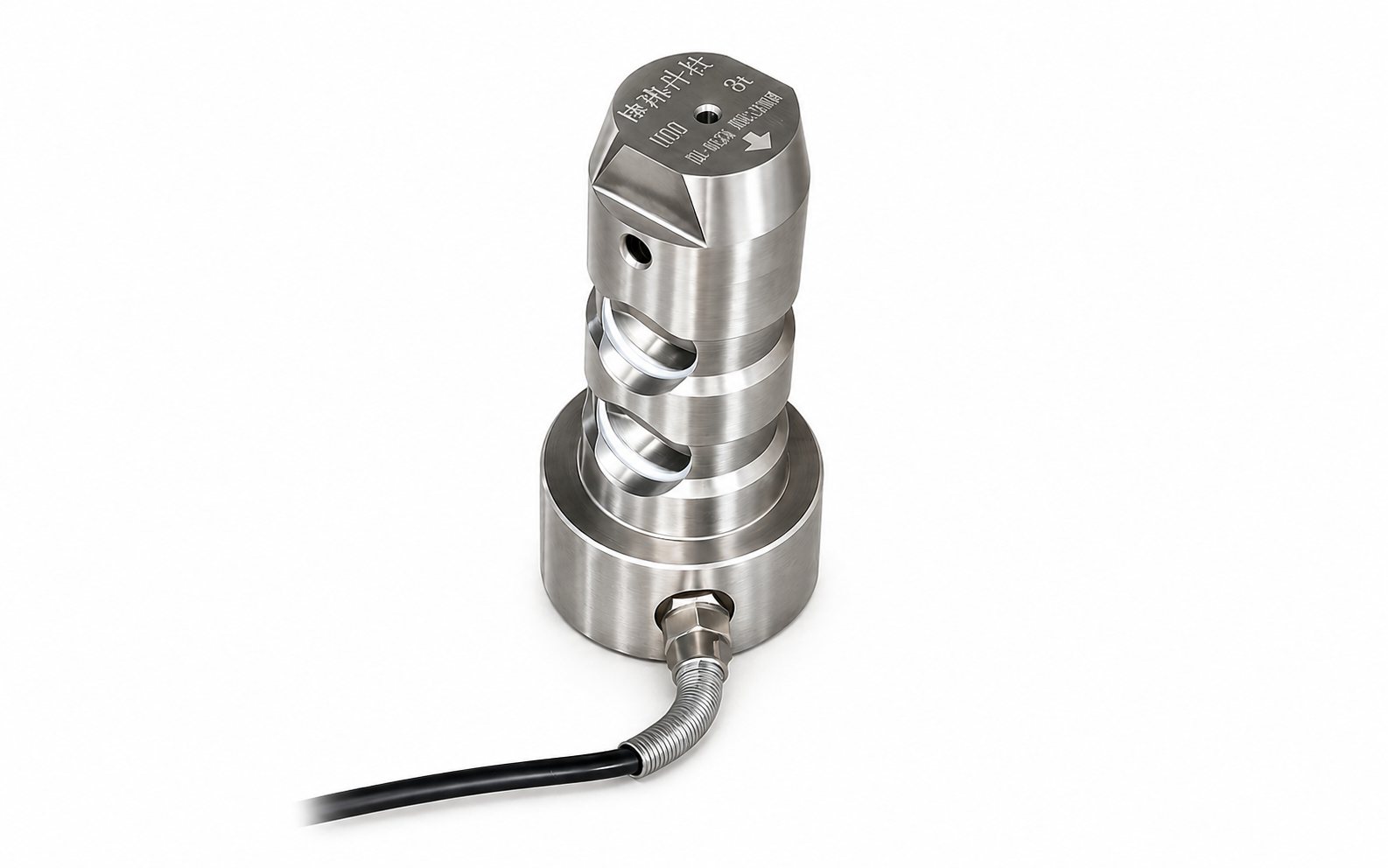

TCLIFT Precision Load Cell Sensor
07 — LOAD SENSOR
High-Accuracy Robust Load Cell

Stainless-steel precision load sensor with integrated cable management. Continuously monitors real-time cage weight to prevent overloading, manage precise loading criteria and protect structural integrity — automatically stopping the hoist if safe limits are exceeded.

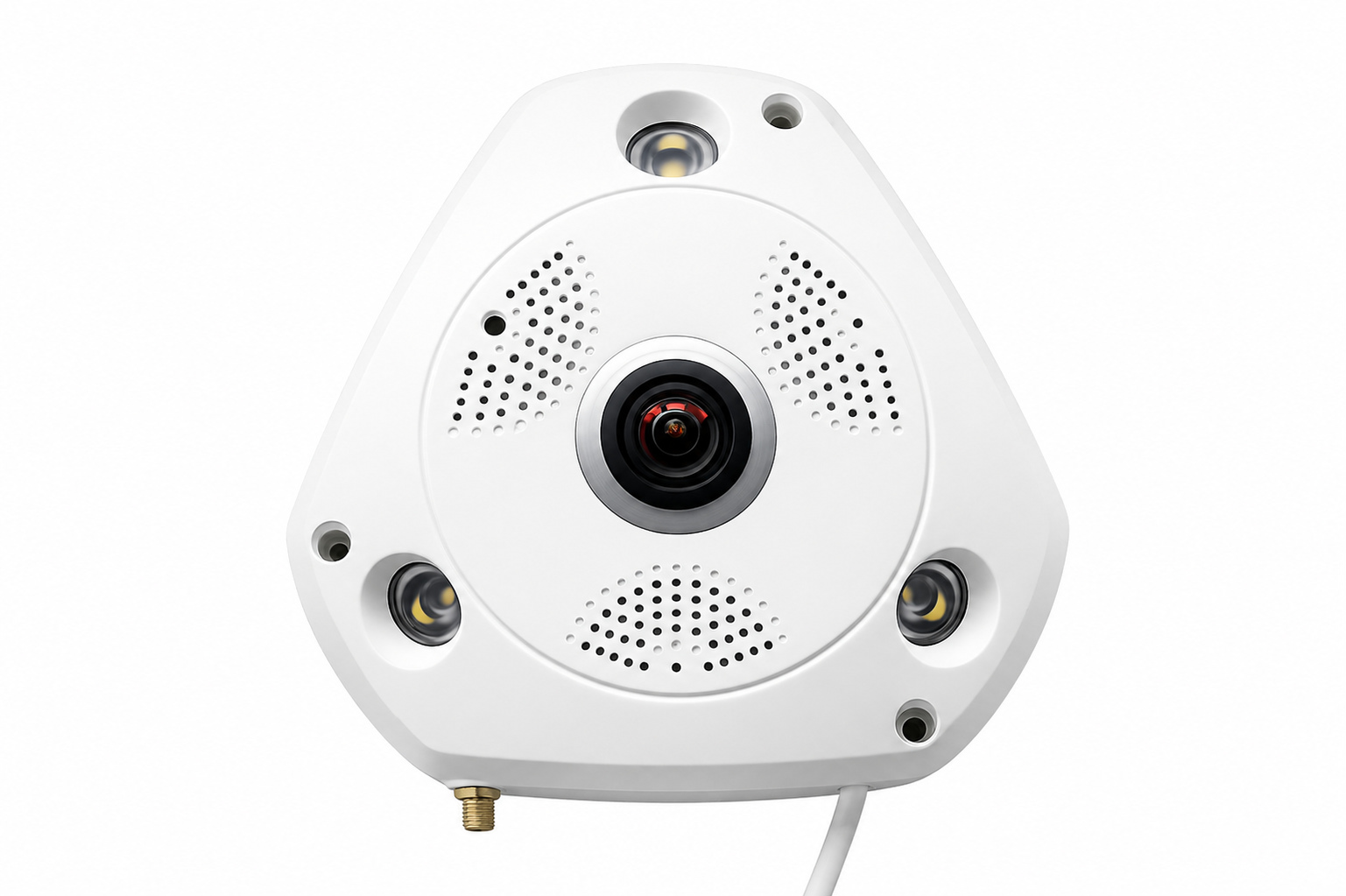

TCLIFT AI Fish Eye Camera
08 — AI CAMERA
AI-Enabled 360° Fish-Eye Camera

Highly accurate wide-angle camera covers the entire elevator interior in real time. AI-powered detection identifies humans inside the cage, counts people travelling per shift, restricts goods-only elevators and enforces maximum occupancy limits — giving you complete control day and night.

Advanced Safety Devices

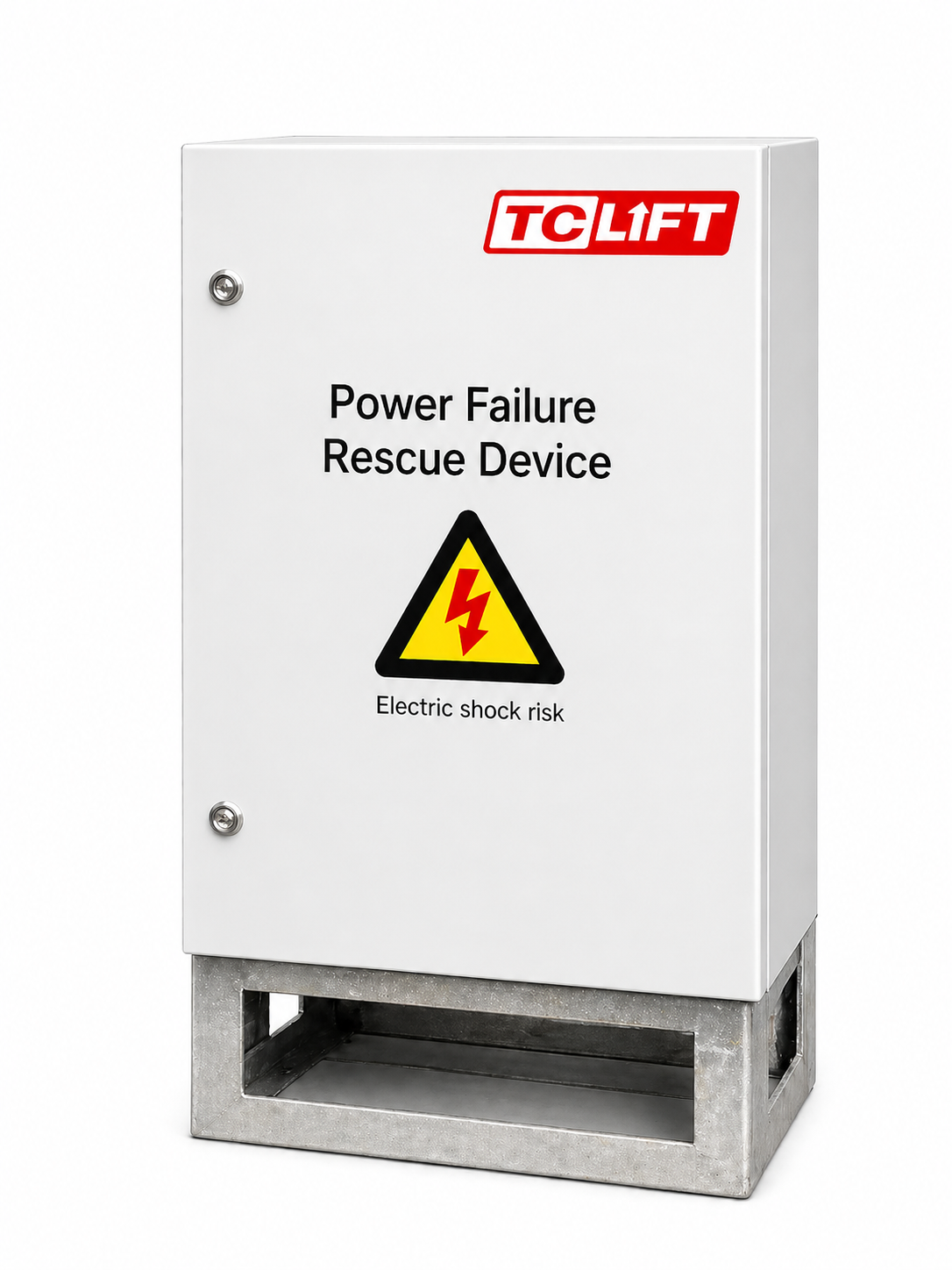

TCLIFT Auto Emergency Rescue Device
09 — AERD
Auto Emergency Rescue Device
  • ZERO TRAPPED WORKERS DURING POWER FAILURE
    TCLIFT Intelligent ARD automatically brings both cages safely to ground level during power outage — protecting human lives when every second matters.
  • FULL-LOAD DUAL CAGE RESCUE TECHNOLOGY
    Engineered to safely rescue both fully loaded cages simultaneously, even from high-rise operating heights.
  • AUTOMATIC SAFE LANDING & DOOR OPENING
    Workers are not left hanging at dangerous heights. Cages automatically descend to ground floor and doors open for immediate evacuation.
  • FAIL-SAFE GRAVITY CONTROLLED DESCENT
    Advanced VFD-controlled braking technology ensures smooth, stable, and controlled emergency lowering without free-fall risk.
  • HIGH-RISE SAFETY CONFIDENCE FOR MEGA PROJECTS
    Designed for demanding high-rise construction environments where power failures can become life-threatening situations.
  • SMART EMERGENCY RESPONSE WITHIN SECONDS
    Automatically detects power failure and activates rescue mode without operator intervention.
  • PROTECTS HUMAN LIFE, EQUIPMENT & PROJECT REPUTATION
    Minimizes panic, injury risk, rescue delays, and costly project shutdowns during electrical failures.
  • INDUSTRIAL SAFETY SYSTEM — NOT JUST BATTERY BACKUP
    TCLIFT ARD continuously monitors brakes, controller logic, battery health, and emergency operation status for maximum reliability.
  • CONTROLLED DESCENT EVEN UNDER FULL LOAD CONDITIONS
    Intelligent regenerative control uses gravity-assisted technology to ensure stable and safe lowering of loaded cages.
  • PREMIUM SAFETY FEATURE INSPIRED BY GLOBAL HIGH-END STANDARDS
    TCLIFT brings advanced emergency rescue technology normally expected only in premium international brands.
  • BUILT FOR REAL CONSTRUCTION SITE CONDITIONS
    Reliable performance under vibration, dust, heat, wind, and unstable site power conditions.
  • PEACE OF MIND FOR BUILDERS, OPERATORS & SAFETY CONSULTANTS
    Because worker safety should never depend only on mains electricity.
  • SMART DIAGNOSTICS FOR FAST TROUBLESHOOTING
    Intelligent fault indication system helps maintenance teams identify issues quickly and reduce downtime.
  • WHEN POWER FAILS — TCLIFT SAFETY CONTINUES
    Because true construction safety begins when unexpected situations occur.

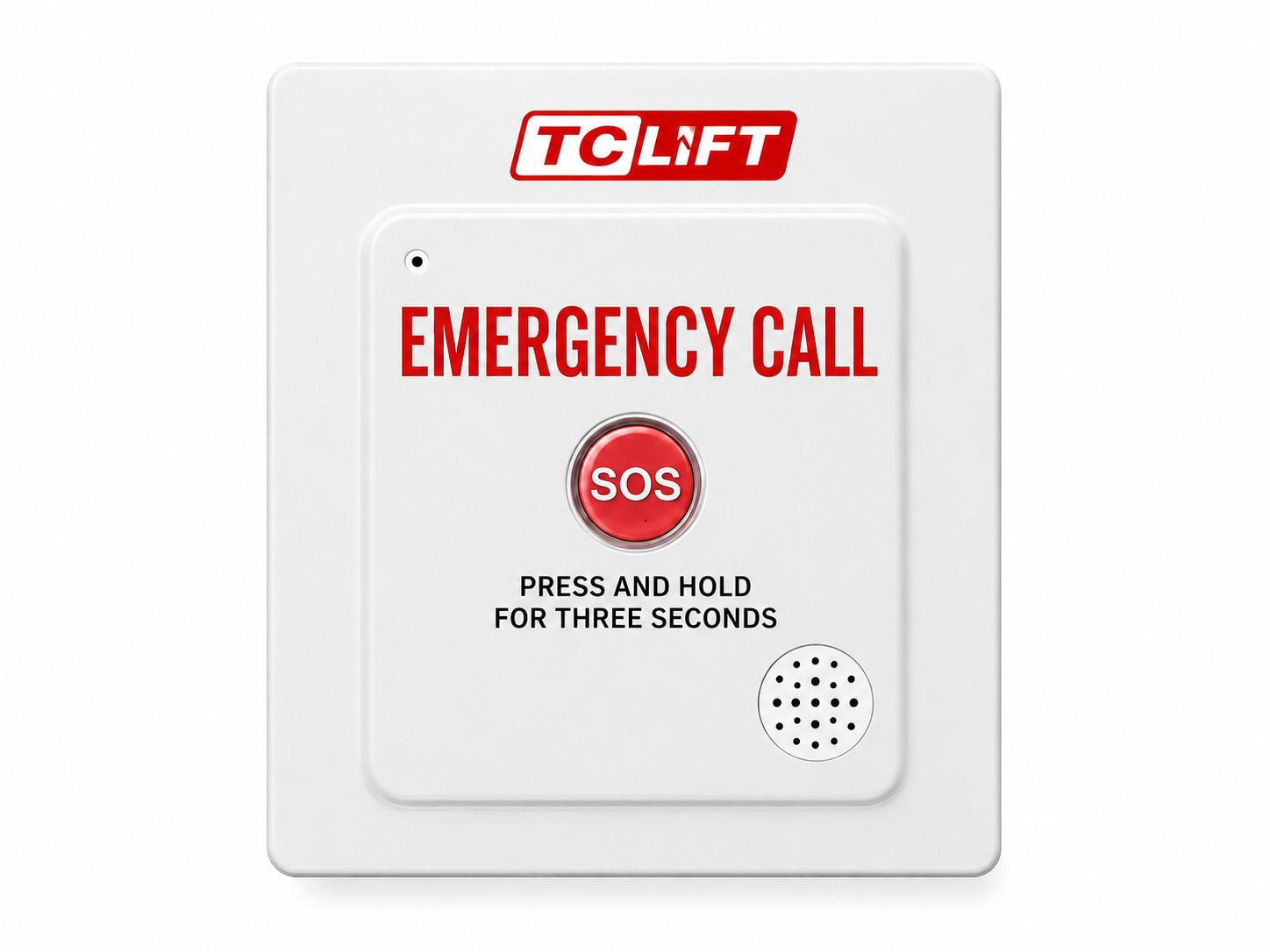

TCLIFT Emergency Communication & Rescue System
10 — ECRS
Emergency Communication & Rescue System

"Smart Calling. Faster Rescue." In a critical moment, every second counts. Press and hold the SOS button for 3 seconds — the ECRS takes over instantly, dialing up to five pre-set contacts in sequence until help is reached. No missed calls. No delays. Just fast, reliable rescue connection when it matters most.

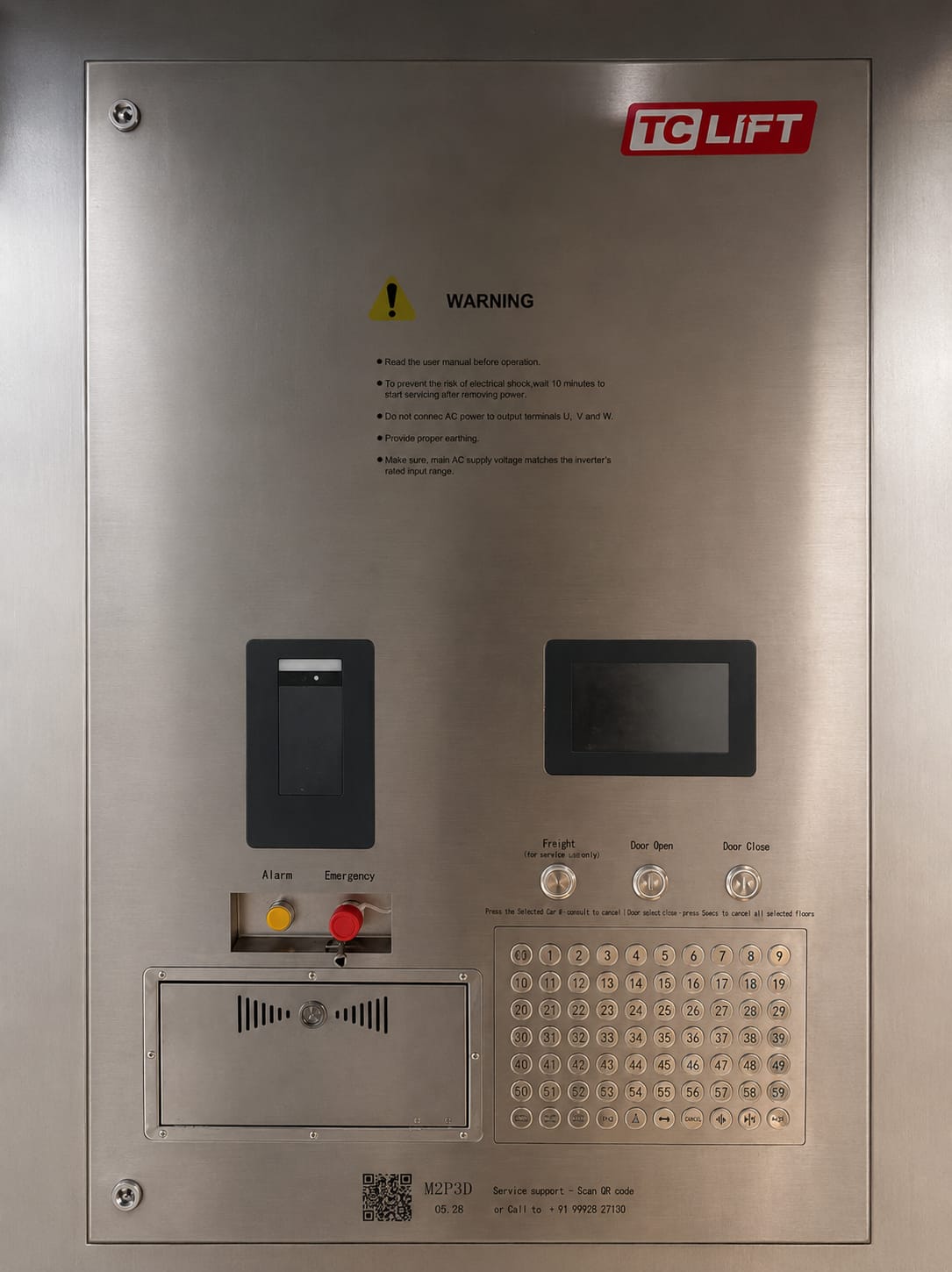

TCLIFT Intelligent Control System
Intelligent Control System — Smart Display Interface
Smart Technology

THE FUTURE
OF LIFTING

Powered by a fully integrated IoT ecosystem, the SMART PRO+ delivers construction site intelligence that was previously impossible.

📡
IoT Remote Monitoring
Monitor machine performance and uptime from anywhere in the world. Real-time dashboards track every operational parameter continuously.
☁️
Cloud Connectivity
All data stored centrally for deep analysis. Enables smarter decision-making and predictive maintenance scheduling across your fleet.
📊
Utilisation Monitoring
Tracks actual machine usage patterns in real time. Optimizes deployment, reduces idle time and improves overall asset utilisation efficiency.
⚠️
Fault Alerts & Diagnosis
Immediate fault identification with fault codes and automated alerts sent instantly. Dramatically speeds up maintenance response and reduces downtime.
🔊
Voice Announcements
Intelligent voice guidance for operators and passengers. Improves safety awareness at every floor and significantly reduces operational mistakes.
👆
Biometric Access Control
Fingerprint-based access control restricts unauthorized usage. Improves site safety, accountability and compliance with labour regulations.
🔄
Shift Control & People Count
Automated day/night shift tracking with people counting. Manages manpower compliance and improves workforce accountability across all shifts.
Safety System

ZERO COMPROMISE
ON SAFETY

Multiple independent, certified safety systems working in concert to protect every person on board — at every elevation, under every load condition, in every scenario.

SRIBS Anti-Fall Device
SRIBS-certified anti-fall device prevents accidental free fall at any speed. Model SAJ 40-1.4B, CE marked. Manufacturer: SRIBS Science & Technology Development Co., Shanghai. Ensures maximum safety of all personnel on board.
Overload Protection
Automatically stops the lift when total load exceeds rated capacity. Smart-controlled with real-time weight monitoring and instant alerts. Prevents structural damage and serious accidents caused by overloading.
Overspeed Governor
Centrifugal overspeed governor automatically controls excessive speed. Tripping speed set at 1.15 m/s (from SAJ device label). Enhances operational safety at all heights and loading conditions.
Limit Switches
Upper, lower and intermediate limit switches prevent over-travel of the lift in both directions. Mechanical and electrical redundancy protects the system from catastrophic damage at travel extremes.
Door Interlock System
The lift operates only when all cage and landing doors are fully closed and positively locked. Left door, right door and communication line terminals independently monitored for complete door safety.
Emergency Stop
Immediate full-system shutdown during any emergency. Accessible from both inside the cage at every floor and at ground level. Enhances emergency response capability and reduces risk of injury.
Auto Brake — Power Failure
Electromagnetic brake automatically engages instantly on power failure. Stops the lift safely and holds position indefinitely. Prevents any uncontrolled movement or descent during power interruptions.
Safety Hook & Buffer
Additional mechanical safety hook and base buffer system provides a final layer of mechanical protection. Absorbs extreme shock loads and enhances overall structural protection under all failure scenarios.
CCTV In-Cage Monitoring
Live surveillance inside the cage at all times. Tracks activity, improves operator discipline and enhances overall site safety management and accountability.
10–15 Day Recording Loop
All footage stored automatically for 10–15 days. Invaluable for post-incident analysis, insurance documentation and site safety compliance audits.
SRIBS SAJ Anti-Fall Safety Device
Mast Sections
3 YEARS
*
Industry-Leading Warranty
* Terms & conditions apply
All major structural components covered
Motor and drive system warranty included
Intelligent control system covered
Dedicated service and support team
Genuine spare parts availability guaranteed
